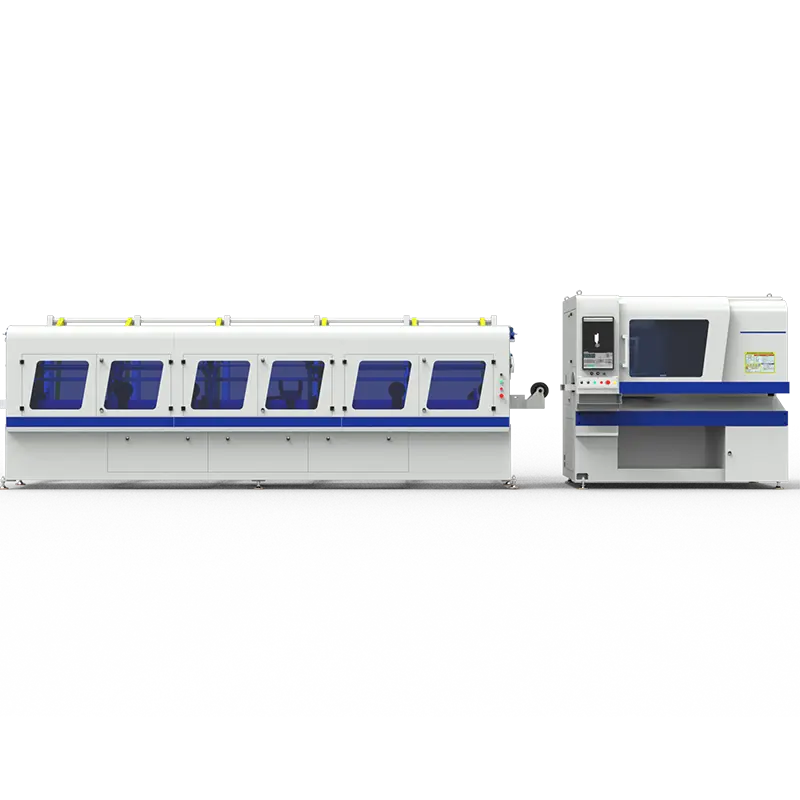

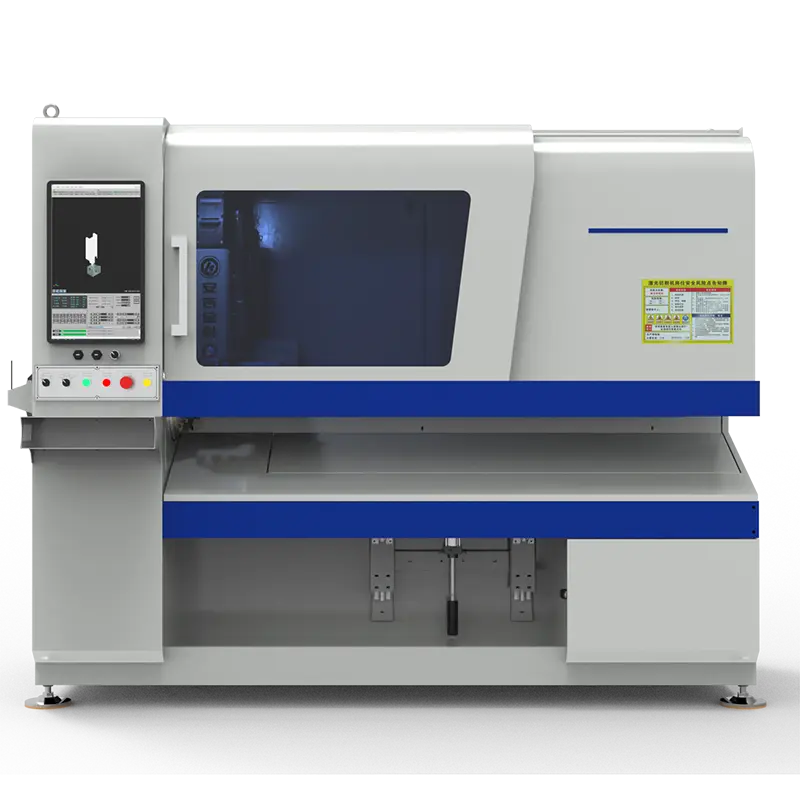

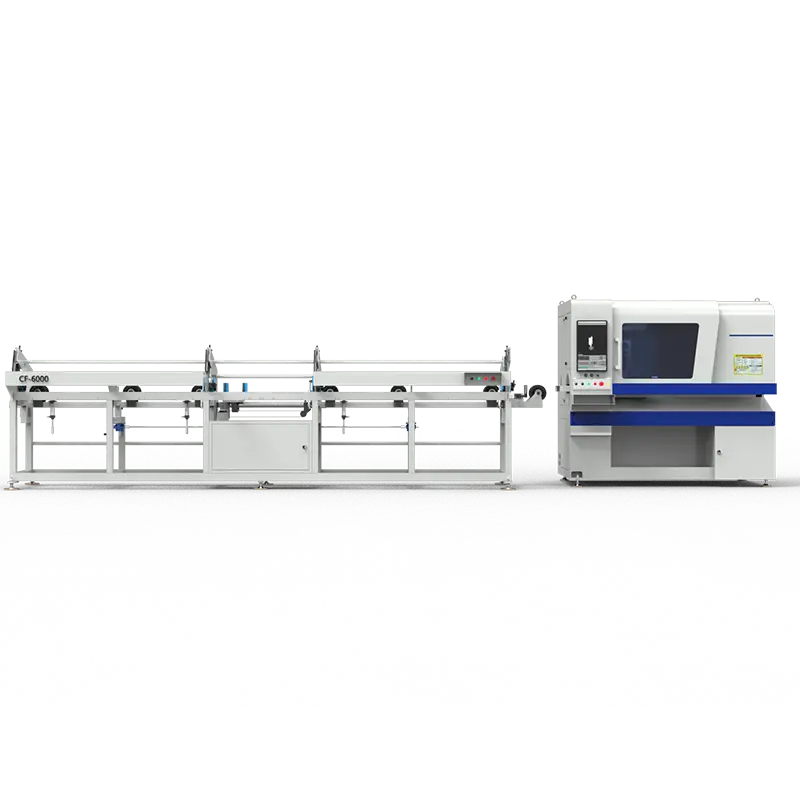

Ultra-Fast Beveling Laser Tube Cutting Machine A90T

Zero tailing technology: innovative two-chuck area cutting design, achieving zero tailings in long material cutting, and increasing material utilization by 15%.

±50° bevel cutting: supports pipe splicing at any angle, improves welding efficiency by 30%, and weld strength reaches 98% of the parent material.

Multi-scenario adaptation: compatible with 12 types of pipes such as round pipes/square pipes/D-shaped pipes, carbon steel cutting thickness up to 12mm, stainless steel 6mm, meeting the needs of 8 major industries such as bathroom, elevators, and new energy.

Efficient and intelligent switching of cutting areas.

Cutting in different areas can achieve zero tailings;;

Segmented feeding, higher precision when cutting long tubes

High-precision chuck, higher clamping accuracy and better dust resistance;

Unique bevel cutting method

±50° bevel cutting method;

Simplify pipe splicing and make welding easier

High-precision chuck: clamping accuracy ±0.05mm, dust-proof design extends service life.

Fully enclosed body:

 safety protection level IP54, effectively blocking sparks and dust, ensuring safe operation.

High-quality components

core components are made of aluminum-magnesium alloy castings, which are lightweight, ensuring smaller motor load and longer life, ensuring 24-hour continuous operation with ultra-low failure rate.

Adjustable focus cutting head

focal length adjustment range ±30mm, can cut materials of different thicknesses, and can process carbon steel with a thickness of up to 12mm when matched with appropriate power.

CE certified, in compliance with ISO 9001 quality system standards
