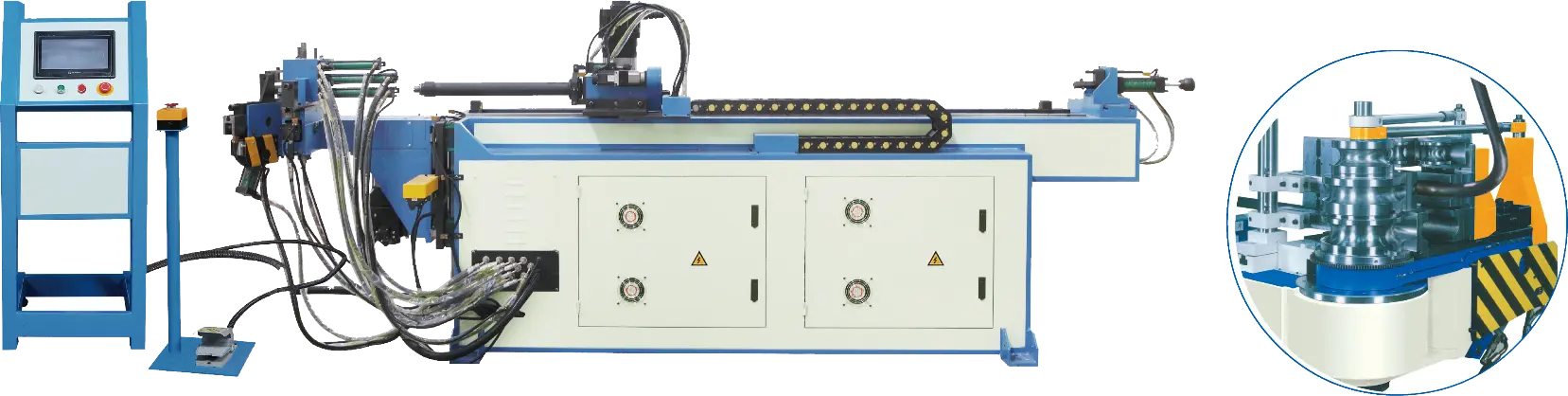

Tube bending machine CNC-5A-3S
FEATURES
DETAILS
 |
|
|
|
Servo motor from Japan Mitsubishi |
Thermal overload relay from France Schneider |
Linear guide from Taiwan Hiwin |
SPECIFICATION
|
Model |
Unit |
18CNC |
28CNC |
38CNC |
50CNC |
63CNC |
|
Max.Bending Capacity |
mm |
18X2 |
28X2 |
38X2 |
50X2 |
63X4 |
|
Bending Radius Region |
mm |
5 - 150 |
10 - 180 |
20 - 200 |
20 - 250 |
25 - 300 |
|
Bending Angle Region |
Degree |
0 - 190° |
0 - 190° |
0 - 190° |
0 - 190° |
0 - 190° |
|
Effective Length Over Mandrel |
mm |
1500 |
2800 |
3200 |
3500 |
4000 |
|
Oil Pressure System Motor |
kw |
2.2 |
2.2 |
4.0 |
5.5 |
5.5 |
|
Max. Pressure |
kg/cm |
160 |
160 |
160 |
160 |
160 |
|
Machine Dimension |
mm |
3000X700X1300 |
3500X750X1300 |
4200X850X1350 |
4800X850X1350 |
5200X1100X1350 |
|
Model/Specifications |
Unit |
76CNC |
89CNC |
114CNC |
129CNC |
|
Max.Bending Capacity |
mm |
76X5 |
89X6 |
114X8 |
129X8 |
|
Bending Radius Region |
mm |
30 - 350 |
40 - 450 |
40 - 550 |
50 - 650 |
|
Bending Angle Region |
Degree |
0 - 190° |
0 - 190° |
0 - 190° |
0 - 190° |
|
Effective Length Over Mandrel |
mm |
4200 |
4600 |
4800 |
5200 |
|
Oil Pressure System Motor |
kw |
7.5 |
11 |
15 |
18.5 |
|
Max. Pressure |
kg/cm |
160 |
160 |
160 |
160 |
|
Machine Dimension |
mm |
5800X1200X1350 |
6200X1500X1350 |
6800X1650X1350 |
7200X1800X1350 |
Configuration
|
Reducer |
Taiwan PHT |
|
Oil pipe |
Jiangsu Kejia |
|
PCB |
Shanghai Yuexing |
|
Throttle valve |
Japan YUKEN |
|
Spillover valve |
Japan YUKEN |
|
Servo Driver |
Japan Mitsubishi |
|
Sealing element |
Japan NOK |
|
Proximity switch |
Taiwan Tiande |
|
Rack |
Germany Atlanta |
|
Manometer |
Dongya Yibiao |
|
Foot switch |
Taiwan Mingwei |
|
Oil pump motor |
SIEMENS |
|
Machine control transformer |
Jiuchuan Group |
|
Vane pump |
NOVA (Sino - American joint venture) |
|
PLC(Programmable logic controller) |
Japan Mitsubishi |
|
AC contactor/Fuse/Power Switch |
France Schneider Electrical |
