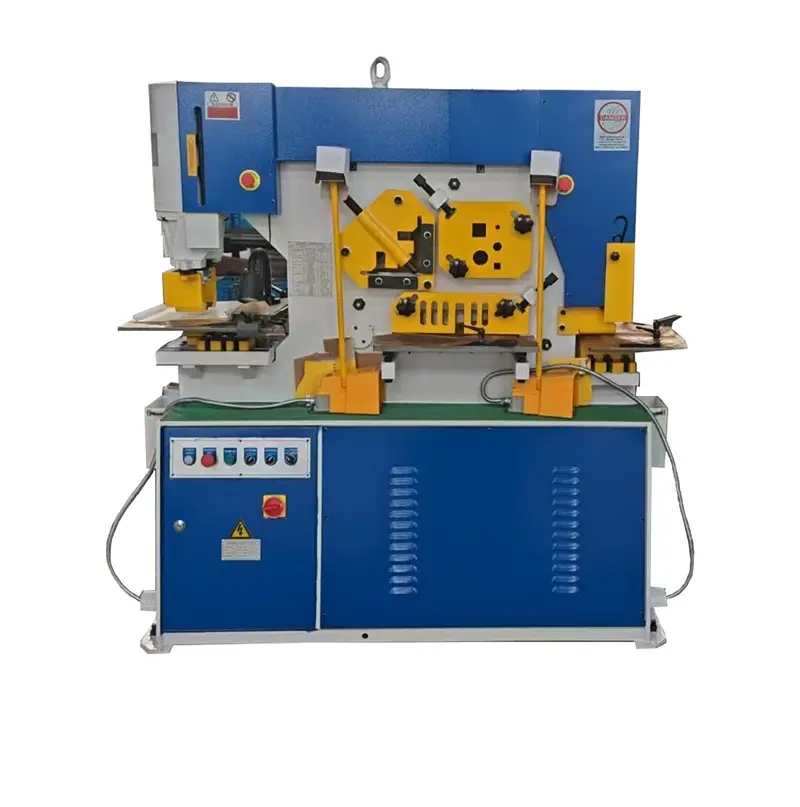

HYDRAULIC lRON WORKER

Specifications

Q35Y - 16

Q35Y - 20

Q35Y - 25

Q35Y - 30

Working pressure (KN)

600

900

1200

1600

Punching Metric(mm)

Max. Capacities

φ25X16

φ30X20

φ35X25

φ38X28

Max. Stroke Length

80

80

80

80

Throat Depth Standard

300

355

400

600

Stroke times

8

8

8

8

Shearing (mm)

Flar Bar(mm)

16

20

25

26

Alternative

400

480

600

600

Material strength

≤450N/m²

≤450 N/m²

≤450 N/m²

≤450 N/m²

Shear angle

7^°

8^°

8^°

8^°

Angle Cutting(mm)

At 90°cut

125X125X12

140X140X12

160X160X14

180X180X16

At 45°Mitre

50X50X5

50X50X5

60X60X6

60X60X6

Section Cutting(mm)

Round/Square Bar

45/40

50

60/50

65/55

Channel

126X53X5

160X60X5

200X75X9

280X86X11

Beam

126X74X5

160X86X6

200X102X9

280X124X10

Tee

120X120X12

140X140X12

160X160X14

180X180X16

Technical Data

Main motor(KW)

4

5.5

7.5

11

Length of machine tool(mm)

1640

1860

2355

2680

Width of machine tool(mm)

730

790

960

1040

Height of machine tool(mm)

1770

1900

2090

2300

Weight of machine tool(kg)

1800

2300

4100

6380

No.

Item

Brand

1

Electrical system

             Schneider

2

Hydraulic parts

Huade、Hoyea

3

Sealing element

VALQUA

4

Motor

LIBIAO

5

Pump

KOMPASS、JINRUN
