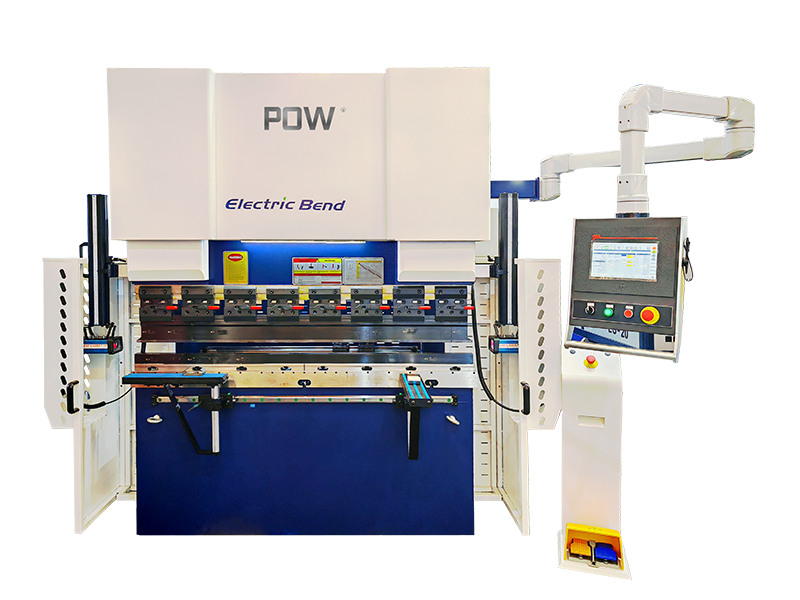

ELECTRIC SERVO CNC PRESS BRAKE EP-60/2000

POW® offer a wide range of press brakes with features and options that can be tailored to different manufacturing environments. Each series offers a range of lengths and tonnages. POW® can also custom design and build a press brake to your exact needs.
The machine can process a range of materials, including stainless steel, brass, copper, alloy, and carbon steel, making it suitable for various applications and industries.

Product Detail

Features

●4 axis: Y1, Y2, X, R（Standard）； 6-axis：Y1,Y2,X,R,Z1,Z2(Optional)；
●High speed, working speed is 2 times faster than hydraulic machines；
●High accuracy, ball screw rod transmission, not affected by the hydraulic oil conditions;
●problems;
●Environment protection ,not hydraulic oil waste poisoning

Details:

	Using a fully sealed heavy-loaded external circulation screw, this product has the unique advantages of high load, long life, low noise and high speed, and can adapt to respective high-load use sites.
	SERVO MOTOR The control mode is driven by two sets of main motors, and the speed and torque are adjusted according to the pressure requirements, which has lower cost and more precise control.
	HIGH RESOLUTION LINEAR ENCODE Italian GIVI high-precision grating ruler (Y1, Y2), slider positioning accuracy ±0.02mm, repeat positioning accuracy ±0.01mm
	E-Touch 16C CNC SYSTEM Taiwan 15.6-inch high-resolution color TFT touch screen Support CAD import Support code scanning programming, 2D drawing programming, table programming Support offline programming and remote assistance Automatically calculate bending process and collision detection function Energy saving and environmental protection: Adapt to servo pump, adjust oil supply according to action, reduce overflow, save 40% of electricity
	DSP LASER SAFETY DSP laser safety protection device fully protects the personal safety of operators.

PARAMETERS

ITEM		UNIT	DETAIL
Nominal force		KN	600
Bending length		mm	2000
Distance between columns		mm	1400
Cylinder stroke		mm	170
Throat depth		mm	210
Open height		mm	470
speed	Approaching	Mm/s	250
	Bending	Mm/s	10~50
	Returning	Mm/s	250
Main power		KW	2*23
Dimension(LWH)		mm	206015002870
