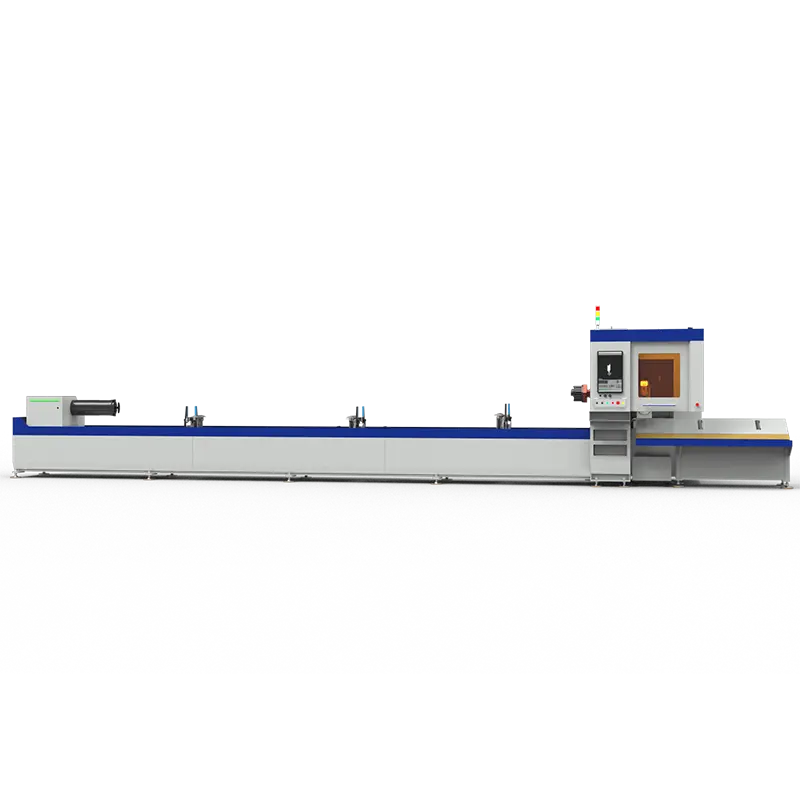

Bevel Laser Tube Cutting Machine A22

Product Detail

Technical parameter

Name	Parameter	Parameter
Model	LPC-A16	LPC-A22
Pipe diameter(maximum)	Round tube: Φ20-Φ160；Square tube：2020-160160 Other tube types:≤160	Round tube: Φ20-Φ220；Square tube：2020-220220 Other tube types:≤220
Feeding pipe length	6300mm	6300mm
Repeat positioning accuracy	±0.03mm	±0.03mm
Maximum speed	190R/min(As the tube weight increases, the motion parameters decrease accordingly)	190R/min(As the tube weight increases, the motion parameters decrease accordingly)
Acceleration	1.2G	1.2G
Chuck load	150KG	150KG
Machine weight	3.5T	4.5T
Dimension	1062317822000mm	1058017821991mm

Features

Breakthrough speed up

Ultra-fast laser cutting makes the speed of bevel cutting same as the speed of straight cutting.

45° bevel precise cutting

High craft precision makes every project easy.

Wide range of applications

It is suitable for round, square and shaped tubes. The cutting technology covers a wide range of metal processing fields, with great adaptability and precision.
